Clean water is essential for everything from growing crops to sustaining livestock and providing for a household. But what happens when your water source is far from a reliable power grid? For many farmers, ranchers, and off-grid homeowners, the answer is a solar water pump. This technology offers a sustainable and cost-effective way to move water exactly where you need it, powered entirely by the sun.
This guide will explain everything you need to know about solar water pumps. We’ll cover how they work, their key components, and the benefits they offer. You'll also find practical advice on how to choose the right system for your needs, ensuring you can make an informed decision for your property. By the end of this article, you will understand how a solar water pump can provide a dependable water solution, reduce your operating costs, and support a more sustainable lifestyle.
A solar water pump is a pumping system that uses electricity generated by photovoltaic (PV) panels to move water. Unlike traditional pumps that rely on grid electricity or fossil fuels, solar pumps are a clean, renewable alternative perfect for remote locations.
The process is straightforward. Solar panels capture sunlight and convert it into direct current (DC) electricity. This electricity powers a motor, which in turn drives the pump mechanism. The pump then draws water from a source—like a well, pond, river, or stream—and pushes it to a storage tank or directly to where it's needed for irrigation or livestock.
The core of the system is the interplay between the solar panels and the pump controller. The controller is the "brain" of the operation. It manages the power from the panels, ensuring the pump runs efficiently even as sunlight conditions change throughout the day. It also protects the pump motor from damage by regulating voltage and current. Many modern controllers include features like low-water cutoff to prevent the pump from running dry and damaging itself.
Every solar water pump system consists of a few essential parts working together. Understanding each component will help you appreciate how the system functions and what to look for when selecting one.
The solar panels, or photovoltaic array, are the power source. They are made up of solar cells that convert sunlight into DC electrical energy. The size and number of panels you need will depend on the pump's power requirements, your location's sun exposure (known as "sun hours"), and how much water you need to pump daily.
This is the heart of the system. Solar pumps come in two main types:

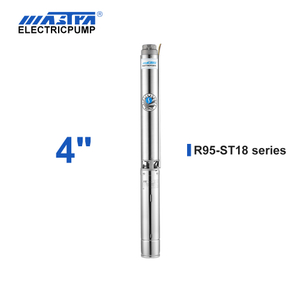

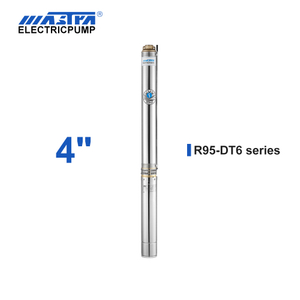

· Submersible Pumps: These are placed directly in the water source, such as a deep well. They are highly efficient because they push water to the surface rather than pulling it.
· Surface Pumps: These are installed on land and pull water from a nearby source through an intake pipe. They are ideal for shallow wells, ponds, or streams.
The pump is driven by a motor, which can be either a DC or AC motor. DC motors are often more efficient for solar applications as they can run directly off the power produced by the panels. AC motor systems require an inverter to convert the DC electricity to AC, which can result in some energy loss.
As mentioned earlier, the controller is a vital component that manages the power flow. It optimizes the pump's performance by adjusting to varying levels of sunlight. Advanced controllers use a technology called Maximum Power Point Tracking (MPPT) to get the most power possible from the solar panels at any given moment. This ensures the pump operates efficiently from sunrise to sunset.
Choosing between a submersible and a surface pump is one of the first decisions you'll make. Your choice depends entirely on your water source and application.
Feature | Submersible Solar Water Pump | Surface Solar Water Pump |
Placement | Installed underwater in the well or water source. | Installed on dry land near the water source. |
Best For | Deep wells (over 20 feet deep), boreholes. | Shallow wells, ponds, streams, rivers, storage tanks. |
Mechanism | Pushes water to the surface. | Sucks water from the source via an intake pipe. |
Efficiency | Generally more efficient for deep applications. | Efficient for shallow water sources and transfers. |
Priming | Self-priming (already in the water). | May require priming to start. |
Maintenance | More difficult to access for maintenance. | Easier to access for inspection and repairs. |
Investing in a solar water pump brings a host of advantages, especially for those in agricultural or remote settings. The benefits go beyond just environmental friendliness; they can have a significant positive impact on your finances and daily operations.
Once the initial investment is made, the energy to run your pump is free. There are no monthly electricity bills and no need to buy diesel or gasoline. This translates into substantial long-term savings. The sun provides a limitless source of power, making your water supply predictable and affordable.
For properties far from the power grid, a solar water pump is a game-changer. It provides a reliable water source without the expense and hassle of extending power lines or relying on fuel deliveries. These systems are designed to be robust and can operate for years with minimal attention, providing peace of mind.
Solar water pumps have fewer moving parts than traditional pumps and do not require the engine maintenance associated with diesel pumps. The solar panels themselves are incredibly durable, often lasting for 25 years or more with just occasional cleaning. The pump and motor may need periodic servicing, but overall, the maintenance is simple and infrequent.
By using solar power, you reduce your carbon footprint. Solar pumps produce zero greenhouse gas emissions and do not contribute to noise pollution. This makes them an excellent choice for anyone looking to adopt more sustainable practices and protect the natural environment.
Choosing the right solar water pump requires careful consideration of your specific needs. Here are the key factors to evaluate:
· Total Dynamic Head (TDH): This is the total vertical distance you need to move the water, from the water level in your source up to the final destination (like a storage tank). It also includes any friction loss from the pipes. Accurate TDH calculation is critical for sizing your pump correctly.
· Flow Rate: How much water do you need per day? This is usually measured in gallons per day (GPD) or gallons per minute (GPM). Consider the needs of your livestock, crops, or household to determine your required flow rate.
· Water Source: Is your water source a deep well, a shallow pond, or a flowing river? This will determine whether you need a submersible or surface pump.
· Geographic Location: The amount of sunlight your location receives—the average daily sun hours—will determine the size of the solar array needed to power your pump effectively throughout the day and year.
A solar water pump is more than just a piece of equipment; it's an investment in a sustainable and self-sufficient future. By providing a reliable, low-cost, and environmentally friendly way to access water, these systems empower farmers, ranchers, and homeowners to thrive, no matter how remote their location.
If you're tired of high energy bills or unreliable water access, it's time to explore what a solar water pump can do for you. Take the time to assess your needs, research your options, and talk to a qualified supplier. Making the switch to solar power is a practical step that can deliver benefits for decades to come.
